REVERSING VALVE SYSTEMS

An innovative solution tailored for the float, container, and special glass industries. Our advanced double-deck reversing valve system is engineered for change-over of flue gas and combustion air simultaneously, utilizing a single valve pair for enhanced efficiency.

KEY FEATURES

  • Multi compatibility: Applicable for all types of flue duct, brick wall and steel duct, square section or round.
  • Temperature Resistant: Uncooled design for operation up to 750 °C.
  • High Durability: Robust design and high-quality materials ensuring exceptional durability even in the demanding environments of glass manufacturing.
  • Cost-Efficient Operation: The high quality allows for operation across multiple furnace campaigns and not only enhances economic operation but also delivers significant cost savings by low maintenance and easy overhaul – making it a smart investment for your facility.
  • Single-Deck System: Designed specifically for waste gas reversal, this system ensures effective management of exhaust gases.
  • Double-Deck System: This feature allows for the simultaneous reversal of both waste gas and combustion air, maximizing operational efficiency.
  • Flexible Arrangements: Our reversing valves can be customized to meet specific customer requirements, ensuring optimal performance in various plant configurations (E.g., back-to-back, side-by-side, angular arrangements).
  • Modular Design: Available in numerous standard sizes, however, our valves are adaptable to any duct sizes based on customer requirements.
  • Precision Sealing: Engineered with machined sealing surfaces, our valves provide reliable and leak-proof operation.
  • Drive Options: Choose between electric or pneumatic drives to best suit your operational requirements.
  • Weight Compensation: The design minimizes drive power requirements through the weight compensation of the slide plates, enhancing energy efficiency.
  • Emergency Drive: In the event of an emergency, our valves can be operated manually or through a pneumatic emergency drive, ensuring safety and reliability.

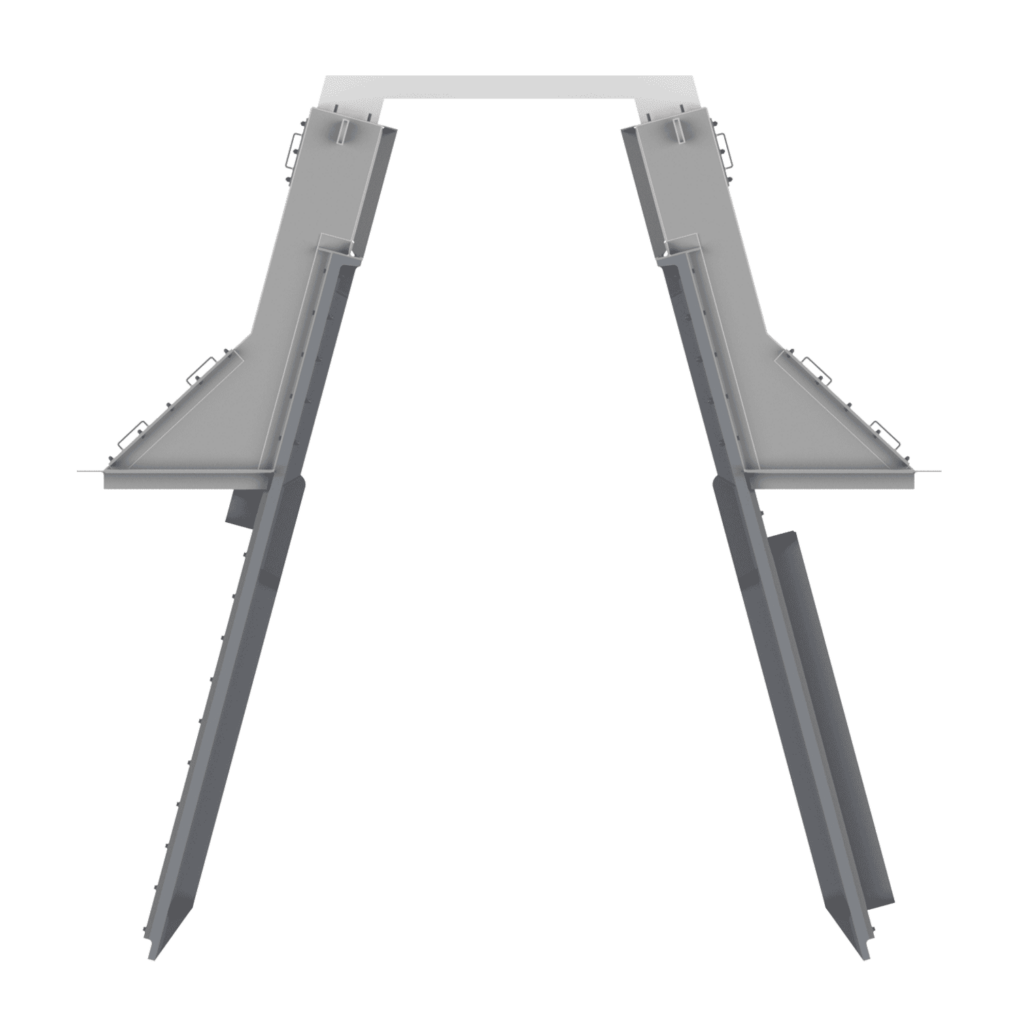

reversing valve systems back-to-back

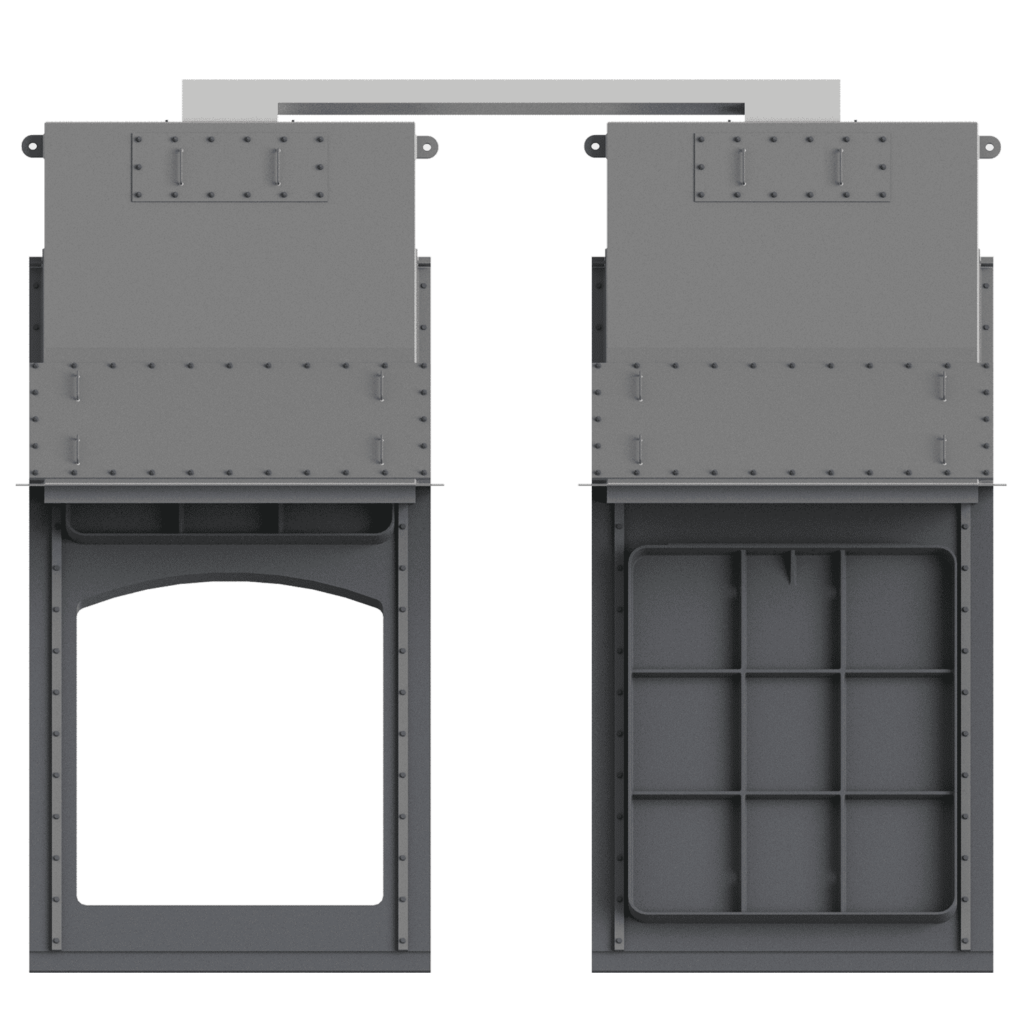

reversing valve systems side-by-side

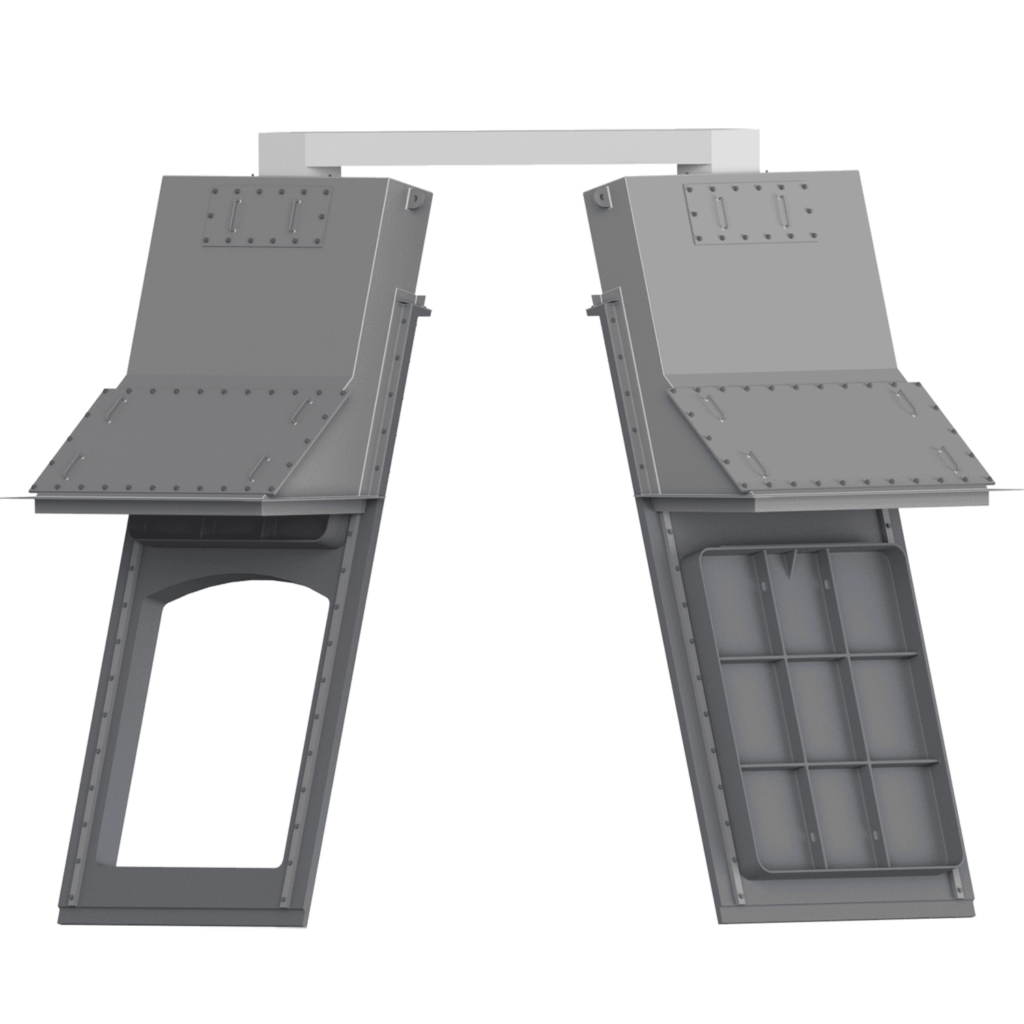

reversing valve systems angular arrangement

Back-to-Back

Side-by-Side

Angular Arrangement

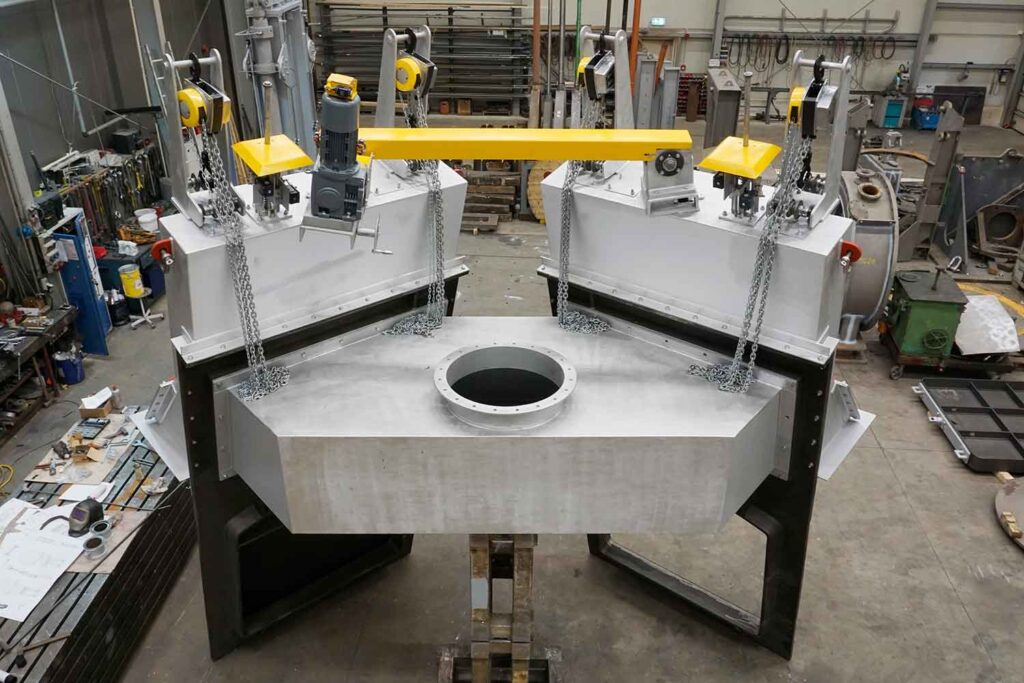

reversing valve system, angular arrangement, in workshop 2

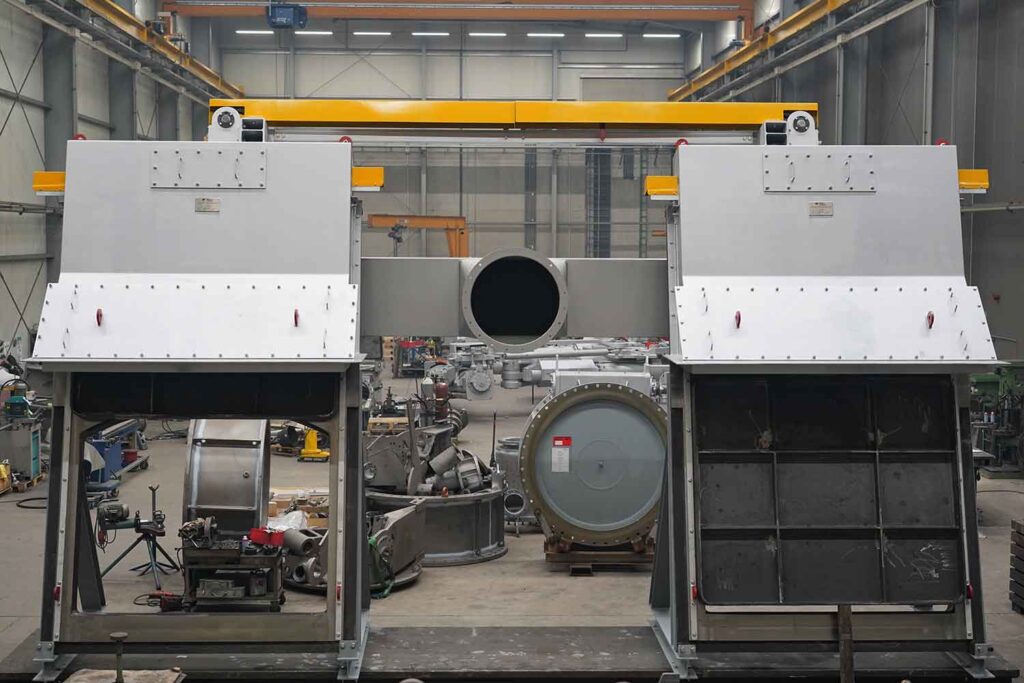

reversing valve system Side-by-Side, in workshop

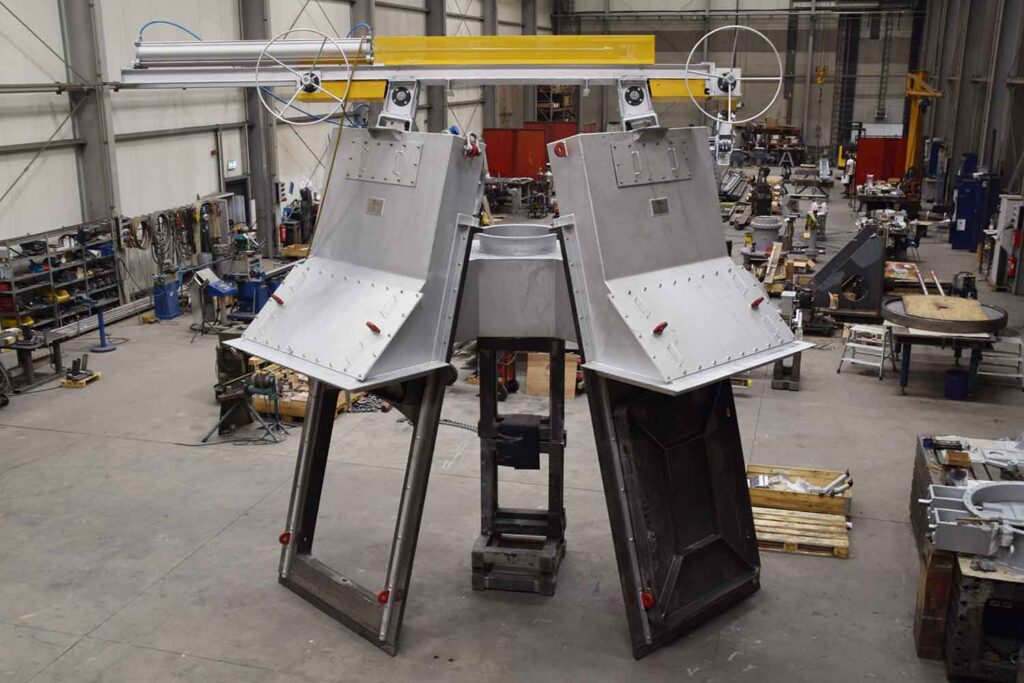

reversing valve system, angular arrangement, in workshop

Angular Arrangement
1600 mm width x 1600 mm height
Electric Drive Unit
Limit Switch Arrantement on top
Emergency Lifting System

Side-by-Side
2200 mm width x 1800 mm height
Electric Drive Unit 1/78 with Transmission
Lateral Limit Switch Arrangement

Angular Arrangement
1400 mm x 1800 mm height
Pneumatic Drive
Indication Switches on Drive Unit
